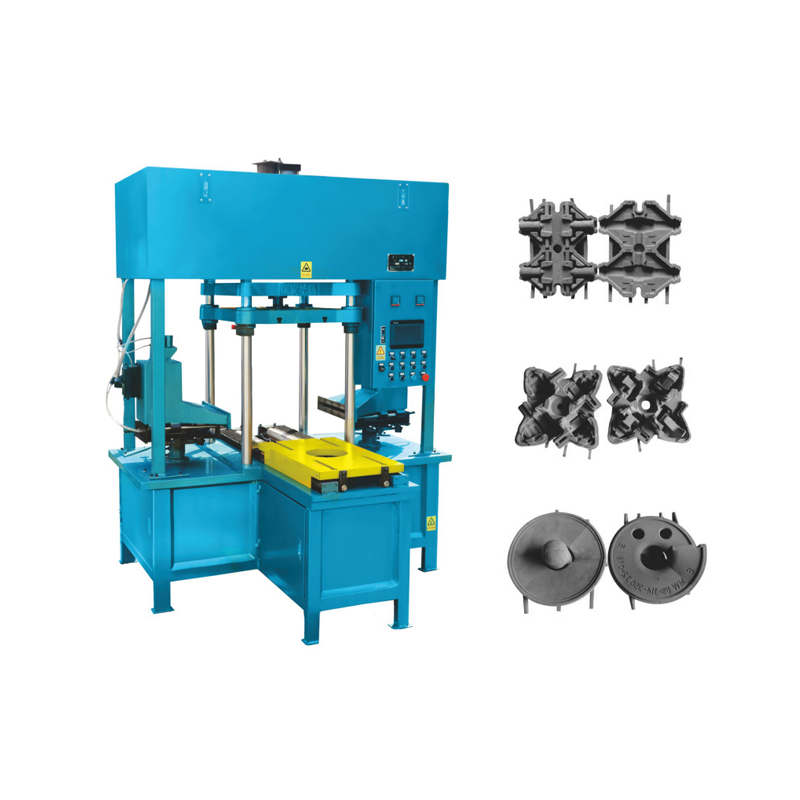

HZ650-X Small Lower Mold Removable Core Shooting Machine

Industry Knowledge Extension

How to Choose a Small Core Shooting Machine?

When selecting a small core shooting machine, it's essential to consider several factors to ensure it meets your production needs. First, assess the material compatibility of the machine. Small core shooting machines are used to create cores from materials like sand, resin, or metal, and different machines are designed for specific materials. Check if the machine can handle the type of sand or binder you plan to use, as this will affect the quality of the cores produced.

Evaluate the machine's capacity and performance. Machines come in different sizes, each with varying core production capacities. It's crucial to select a machine that matches your production scale. Consider the required cycle time, which is the time the machine takes to complete one cycle of core shooting. A faster cycle time may be important for high-volume operations, while slower cycles might suffice for smaller batches.

Look into the automation features of the machine. Modern core shooting machines often come with automation for better precision and less manual intervention. This is particularly important if you are aiming for high-quality cores and reduced labor costs. Finally, consider the maintenance requirements of the machine. A well-designed machine should be easy to maintain, with accessible components for cleaning and replacing parts. A machine with a long lifespan and minimal downtime will enhance your production efficiency.

How Does a Sand Core Shooter Work?

A sand core shooter is a vital machine used in the casting industry to create sand cores, which are used for hollow metal castings. The process begins by loading sand mixed with a binder (often a resin) into a hopper or storage area of the machine. The mixture is then prepared to ensure the sand particles are evenly coated with the binder, which will harden when exposed to heat. This mixture is crucial for forming strong and durable cores.

The sand-binder mixture is injected into a core mold or cavity that is designed to form the core's shape. The core shooter utilizes a high-pressure system to force the sand mixture into the mold, ensuring a compact and uniform core structure. The machine may also include a heating element or a curing system that accelerates the hardening process, which solidifies the core, making it ready for use in metal casting.

Once the core is formed, it is ejected from the mold, and any excess sand is removed. The resulting core is then placed in the casting mold, where molten metal is poured around it. After cooling, the metal is solidified, and the sand core is removed, leaving behind a hollow shape in the metal casting. The sand core shooter is designed to create cores with precise dimensions and surface finishes, which is essential for producing complex parts with intricate internal geometries.

What Are the Characteristics of High-Accuracy Sand Core Shooters for Complex Castings?

High-accuracy sand core shooters are designed to handle the demands of complex castings, where precise and intricate core shapes are required. One of the key characteristics of these machines is their ability to produce consistent and uniform cores. This is achieved through precise control over the sand-binder mixture, the pressure applied during the shooting process, and the speed of injection. Such accuracy is critical when producing complex castings, as any deviation in the core's shape or dimensions can result in defects in the final product.

Another important feature of high-accuracy sand core shooters is their ability to create cores with tight tolerances. Complex castings often require cores with intricate internal details that must be precisely formed. Machines equipped with advanced control systems can ensure that the sand mixture is injected evenly and that the core is properly formed, minimizing the need for post-processing or adjustments. This level of precision reduces scrap rates and improves the overall quality of the casting.

High-accuracy machines also come with improved automation and monitoring capabilities. With automated control systems, these machines can adjust settings in real-time to maintain consistent core quality throughout production. They can monitor variables such as temperature, pressure, and binder content, ensuring that the cores meet stringent specifications. This capability is particularly beneficial in industries that require highly complex and detailed castings, such as aerospace, automotive, and machinery.

High-accuracy sand core shooters often feature enhanced durability and reliability. These machines are designed for long-lasting performance under heavy usage, which is important for maintaining continuous production in industries with high casting volumes. The advanced features of these machines not only improve the quality of the cores but also contribute to reducing production costs by enhancing efficiency and minimizing downtime.
