Metal Casting Sand Molds: Balancing Precision, Efficiency, and Cost

Metal casting sand molds remains one of the most widely used and flexible manufacturing methods for producing metal components. From heavy machinery parts to automotive components and industrial tools, sand casting provides a cost-effective solution for shaping metal into complex geometries. However, the success of the casting process depends heavily on the design and quality of the sand mold. Poor mold design can result in surface defects, dimensional inaccuracies, or structural weaknesses in the final part.

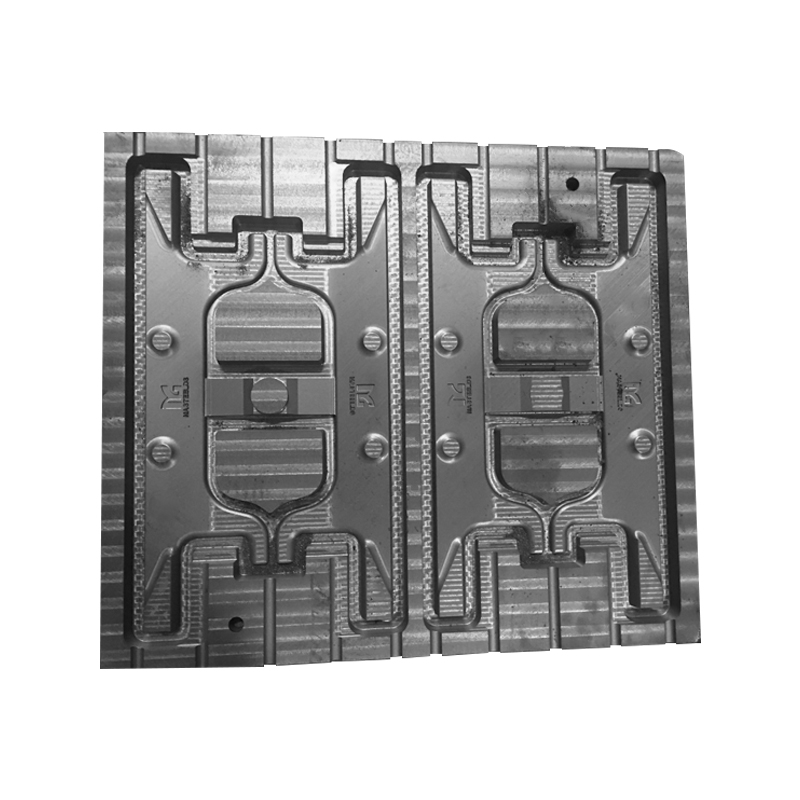

A sand mold is a negative impression of the final metal component, formed using compacted sand around a pattern. During casting, molten metal is poured into the mold cavity, where it solidifies into the desired shape. After cooling, the mold is broken away to retrieve the metal part.

The sand mold must meet several functional requirements:

It must withstand high temperatures without collapsing.

It should provide an accurate cavity that replicates the pattern.

It must allow gases to escape during pouring.

It should be easy to remove once the casting is complete.

To meet these goals, careful attention must be paid to the design and preparation of the mold.

The choice of sand and binding material directly affects the performance of the mold. Natural sand, synthetic sand, or a combination may be used depending on the casting requirements. Common binders include clay (for green sand molds), chemical resins, or water-based binders.

Important properties to consider in the mold material include:

Permeability: Allows gas to escape, reducing the risk of gas porosity in the casting.

Thermal conductivity: Influences the cooling rate of the metal.

Strength: Ensures the mold holds its shape during pouring and solidification.

Collapsibility: Facilitates easy removal of the casting without damaging it.

Balancing these properties ensures the mold performs reliably under various casting conditions.

Draft angles are slight tapers built into the mold cavity to allow easy removal of the pattern. Without proper draft angles, the pattern can drag the sand during withdrawal, distorting the mold and affecting part accuracy.

Similarly, the parting line—the plane where the mold halves meet—should be placed thoughtfully. It should minimize complexity, ensure balanced mold filling, and avoid creating sharp steps or mismatches on the casting surface.

Proper planning of draft and parting lines improves both mold durability and casting quality while reducing the need for post-casting machining.

The gating system controls how molten metal enters the mold cavity. A well-designed system includes:

Sprue: The vertical channel through which metal is poured.

Runners: Horizontal channels distributing metal to different parts of the mold.

Gates: Final entry points into the mold cavity.

Designing the gating system is crucial for controlling metal flow, minimizing turbulence, and preventing defects such as air entrapment, cold shuts, or inclusions. Smooth and controlled flow ensures the cavity is filled uniformly, improving casting integrity and surface finish.

During pouring, gases are released from the molten metal, mold materials, or entrapped air. If these gases do not escape efficiently, they can cause internal porosity, blowholes, or surface blemishes.

Vent channels or permeable mold materials help in releasing gases. Additionally, ensuring that the mold has no blind pockets or unvented zones is essential for maintaining casting quality.

Metals shrink as they cool and solidify, and molds must account for this by incorporating shrinkage allowances. The amount of shrinkage varies depending on the metal being cast—for example, aluminum has higher shrinkage than cast iron.

Machining allowances are also necessary for areas that will undergo post-processing. Designers typically add extra material to surfaces that require precise finishing, such as bearing seats or mating faces.

Both shrinkage and machining allowances must be determined accurately to ensure the final product meets dimensional specifications without excessive rework.
