A Guide to Troubleshooting Cold Box Vertical Parting Core Shooting Machines

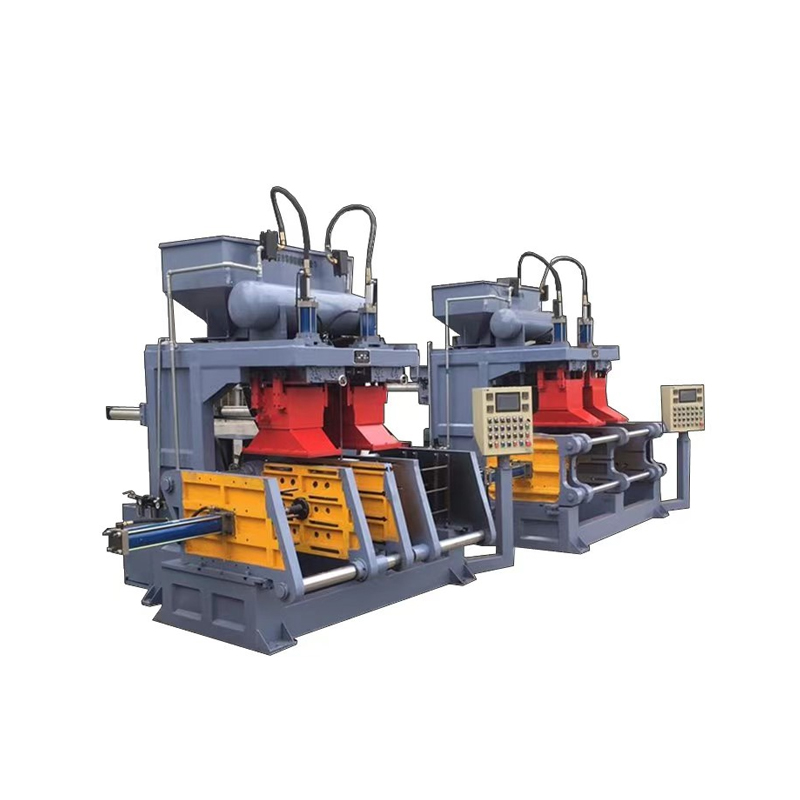

The Cold Box Vertical Parting Core Shooting Machine is a sophisticated piece of equipment that plays a pivotal role in the foundry industry. It is renowned for its ability to produce sand cores with high precision and consistency, which are critical components in the casting process.

The machine is designed for vertical parting, allowing for efficient core production with minimal waste. The machine's core making process involves filling a mold with sand, compacting it, and then ejecting the hardened core.

Binder plays a critical role in the core making process. If the binder is not mixed and distributed evenly, it can lead to weak cores or uneven hardness.

- Solution: Ensure that the binder mixing system is clean and functioning correctly. Regular maintenance and calibration of the mixing equipment are crucial to ensure proper binder distribution.

Variations in core hardness can affect the quality of the final cast product. This issue can arise due to improper binder curing or temperature fluctuations.

- Solution: Monitor the curing process closely. Ensure that the temperature and humidity in the curing area are within the optimal range specified by the binder manufacturer.

If the sand does not fill the mold properly, it can lead to cores with voids or inclusions, which can compromise the structural integrity of the final product.

- Solution: Check the sand feeding system for any blockages or leaks. Ensure that the sand is of the correct moisture level and that the sand hopper is filled to the appropriate level.

Core ejection is a critical step in the core making process. If the core is not ejected cleanly, it can lead to damage or deformation.

- Solution: Inspect the ejection system for wear and tear. Lubricate moving parts regularly and replace worn components to ensure smooth ejection.

Excessive vibrations can lead to misalignment of components and reduced machine life.

- Solution: Regularly check the machine's foundation and ensure it is level and stable. Tighten all bolts and check for any loose components that may be causing vibrations.

Modern Cold Box Vertical Parting Core Shooting Machines are equipped with sophisticated control systems. Electrical issues can range from minor glitches to complete system failures.

- Solution: Regularly inspect and maintain the electrical components. Ensure that the control system software is up-to-date and that all sensors and actuators are functioning correctly.

Over time, mechanical components can wear out, affecting the machine's performance.

- Solution: Implement a regular maintenance schedule that includes inspection and replacement of worn parts. This includes checking the condition of the mold plates, bearings, and other critical components.

Leaks in the pneumatic system can lead to loss of pressure and reduced efficiency.

- Solution: Regularly check all pneumatic connections and seals for leaks. Replace any damaged components promptly to maintain optimal pressure levels.

Nozzles can become clogged or dirty over time, affecting the sand flow and core quality.

- Solution: Clean the nozzles regularly and inspect them for wear. Replace any nozzles that show signs of damage or excessive wear.

Proper temperature control is essential for the curing process. Any fluctuations can lead to core quality issues.

- Solution: Regularly calibrate temperature sensors and ensure that the heating and cooling systems are functioning correctly.
